Product Details:
|
| Beam Angle(°): | T2M | Support Dimmer: | Yes |
|---|---|---|---|
| Lighting Solutions Service: | Lighting And Circuitry Design, Onsite Metering, DIALux Evo Layout, LitePro DLX Layout, Auto CAD Layout, Agi32 Layout, Project Installation | LED Chip: | San'an/Lumileds 2835 |
| LED Driver: | Normal/ MOSO | Control Mode: | APP Control, Remote Control, Sensor Control |
| Usage: | Street Road Garden Square Highway | Material: | Die Casting Aluminum +PC Lens+Glass |
| Highlight: | led road lamp 100w,100w street lamp post,ip66 waterproof led road lamp |
||

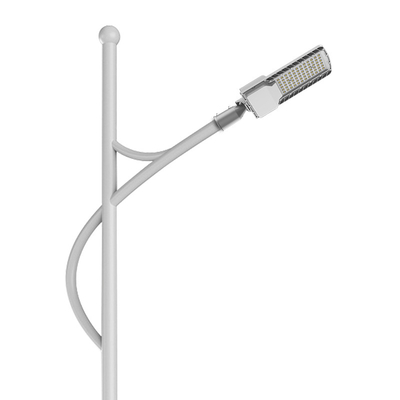

IP66 Waterproof Road Lamp 100W LED Street Lights for Roadway
Our IP66 waterproof 100W LED street lights are engineered to provide reliable illumination for roadways. With a robust waterproof rating, these road lamps are built to withstand harsh weather conditions, ensuring long-term durability and performance. The 100W LED lights deliver bright, focused illumination that enhances visibility and safety on roads, making them ideal for various roadway applications. Their energy-efficient design ensures effective lighting while minimizing power consumption.
Product Features
| Model | YXR-SL-100W-B |
| Wattage | 100W |
| Other Power Options | 30W 50W 70W 150W 200W 240W |
| Lumen | 17000±5%lm |
| Size(mm) | L564*W221*H75 |
| Net Weight | 1.8kg |
| Light Efficacy | 170lm/W ±5% |
| Beam Angle | T2M |
| LED | Lumileds 2835 |
| Color Temperature | 2800-3000K; 3000-3200K; 4000-4500K; 5000-5500K; 6000-6500K |
| Input Voltage | AC100-277V(MOSO) |
| CRI | ≥70Ra |
| Mounting Hole( mm) | Ø60 |
| PF | ＞0.97 |
| THD | THD<15% |
| Work Temperature | -40~60℃ |
| LED Junction Temp | ≤80°C |
| Humidity | 15%~90% RH, no condensing |
| IK Grade | IK08 |
| IP Grade | IP66 |
| Life Span | ≥50000H (LM80@35°C) |
| Warranty | 5 Years |
| Finish | Sprayed with outdoor special powder |
| Body Material | Aluminum + PC |
| Wire | Rubber cable(3*0.75mm²) L=0.3m |
| Electronic Safety Grade | Class I |
Products Details

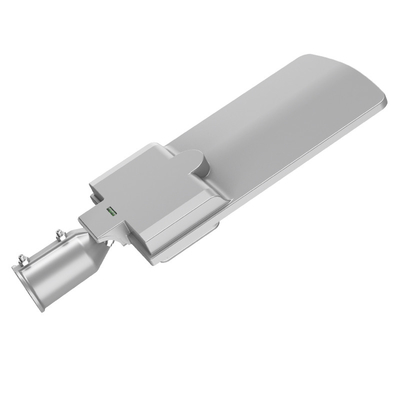

Heavy-duty cast aluminum housing
Durable and has a better heat dissipation effect.
Moso or other famous brand LED driver
High efficiency, energy saving, stable, flicker free, longer span life.
IP66 Waterproof for wet location
IP66 rated for external road way illumination

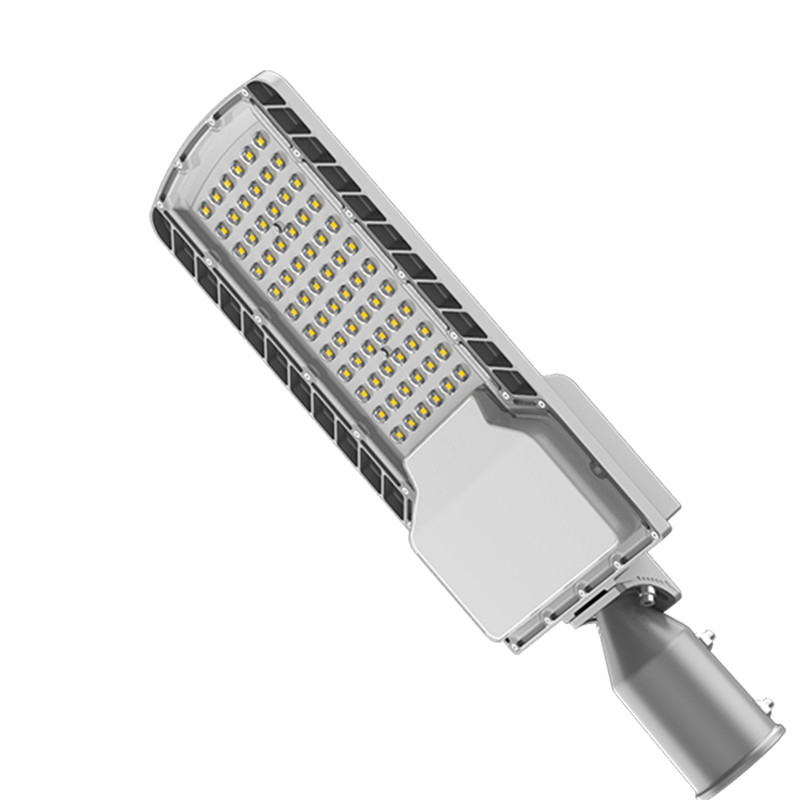

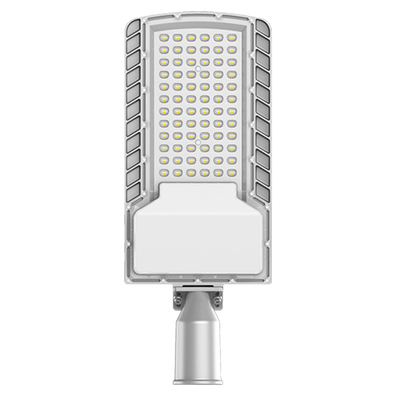

High bright A-class world-famous brand LED; PC optical lens
High luminous efficiency up to170Im/W±5%, low decay without flicker; High transmittance with uniform light
output.light transmittance>90%.
Applications
