Product Details:
|
| Application: | Badminton Court, Basketball Court, Tennis Court, Table Tennis Field | Beam Angle(°): | 15°/ 30° / 45° / 60° |
|---|---|---|---|
| Input Voltage(V): | AC100-277V | Lamp Luminous Flux(lm): | 75000 |
| Warranty(Year): | 5-Year | Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Auto CAD Layout, Agi32 Layout |
| Product Name: | Led Flood Stadium Lights | Power: | 500W |
| LED Chip: | San'an/Lumileds/SMD 3030 | Material: | PC Lens + Aluminum Housing |
| Highlight: | 500w led sports lights,500w sports lighting fixtures,stadium led sports lights |
||

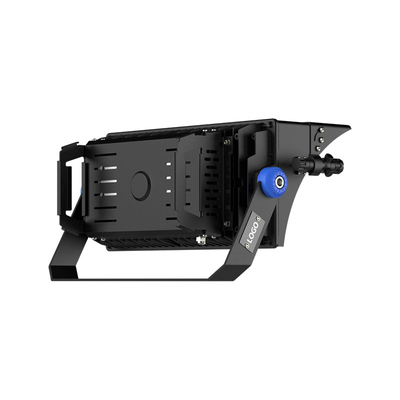

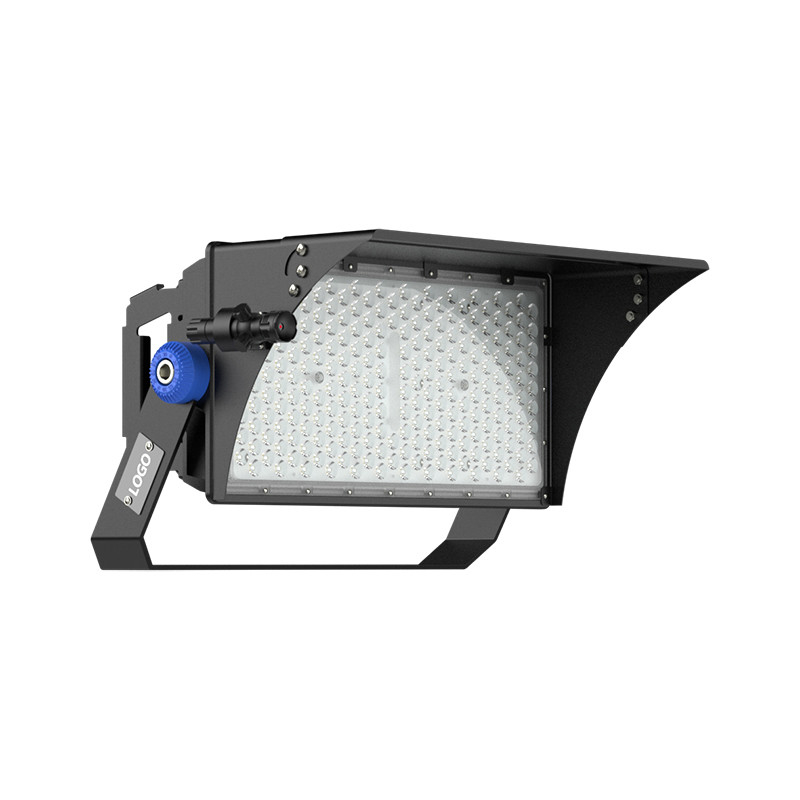

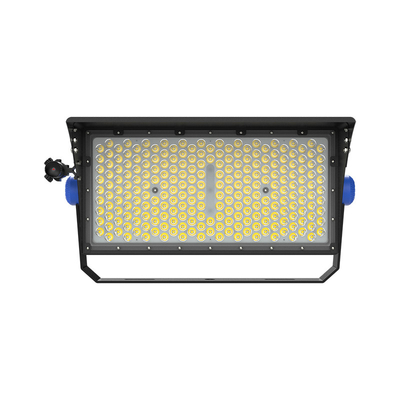

Featuring efficient heat dissipation, this 500W LED sports stadium light operates on AC240V and is perfect for illuminating piers. Its advanced cooling system prevents overheating, ensuring consistent performance and longevity. The light delivers high-intensity brightness and is built to endure harsh marine environments, making it a reliable choice for outdoor sports facilities and waterfront areas.
Product Details
| Model | YXR-QC-500W-K |
| Power | 500W |
| Lumens(lm) | 80000 |
| Other Power Options | 1000W/1500W/2000W |
| Weight(kg) | 15.1 |
| Sizes(mm) | 563*313*413 |
| Efficacy | 160lm/W |
| CCT | 3000K-6500K |
| CRI | ≥70Ra |
| LED Chips | San'an 3030/Lumileds 3030 |
| PF | >0.97 |
| Input Voltage | AC100-277V(Moso) |
| Beam Angle | 15°/ 30° / 45° / 60° |
| Work Temp | -35~55℃ |
| Humidity | 15%~90% RH, no condensing |
| Finish | Sprayed with outdoor special powder |
| Life Span | ≥50,000 Hrs (LM70 @ 35℃ ) |
| IP Grade | IP66 |
| IK Grade | IK08 |
| Body material | PC lens + Aluminum housing |
| Power Wire | Rubber cable(3*1mm²) L=0.3m |
| Electronic safety grade | Class I |
Laser sight
Quick-installed laser sight, easily adjusts the direction of illumination to achieve maximum lux
and uniformity.
Brand Driver
Famous brand Moso driver or other brand driver optional, good stability, high efficiency, flicker free, anti-surge.
180° adjustable.
The bracket is equipped with a dial, 180° adjustable.
Lamp IP66 Waterproof
IP67 LED Driver with silicone waterproof sealing strip, UV-resistant material, reliable without
failure.
Optical light distribution
With narrow, middle width beam angle: 15° 30° 45° 60° 90°.
Luminous efficiency
150lm/W Higher light efficacy can be customized, low decay.
FAQ
Q1. Are you a manufacturer?
Yes, we have our factory with over 10 years of R&D and manufacturing experience based on ISO quality management since 2011.
Q2. Do you have any MOQ limit for LED light orders?
No MOQ, 1pc for sample checking is available.
Q3. Can I get a lower price for a large quantity of orders?
Yes, please check with our sales staff for the details.
Q4. How about the lead time of ordering?
Our standard sample lead time is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time, please also check with our sales team.
Q5. Can you provide OEM and ODM services?
We can provide OEM and ODM products, with customized label designs on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.
Q6. What is the payment terms of your formal order?
We accept payment via TT, Paypal, and Western Union, and we offer EXW, FOB, CIF, and CFR terms.
Q7. How to deal with the defective?
All of our products are produced in a strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer a 3- 5 years warranty for this product, if there is any defective during the warranty, please provide pictures or videos of the working situation of the defective lights, and we will ship the new lights to you within a few days or send it together with your next order.
