Product Details:
|
| Application: | Garden | Color Temperature(CCT): | 2700-6500k |
|---|---|---|---|
| IP Rating: | IP66 | Lamp Body Material: | Aluminum Alloy |
| Beam Angle(°): | 30/60/90/120 | CRI (Ra>): | 70 |
| Input Voltage(V): | AC100-270V | Lamp Luminous Efficiency(lm/w): | 160/170/190 |
| Lamp Luminous Flux(lm): | 4800 | Warranty(Year): | 3-Year |
| Working Lifetime(Hour): | 50000 | Working Temperature(℃): | -40 - 60 |
| Color Rendering Index(Ra): | 70 | Light Source: | LED |
| Support Dimmer: | Yes | Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout, Auto CAD Layout, Project Installation |
| Lifespan (hours): | 50000 | Working Time (hours): | 50000 |

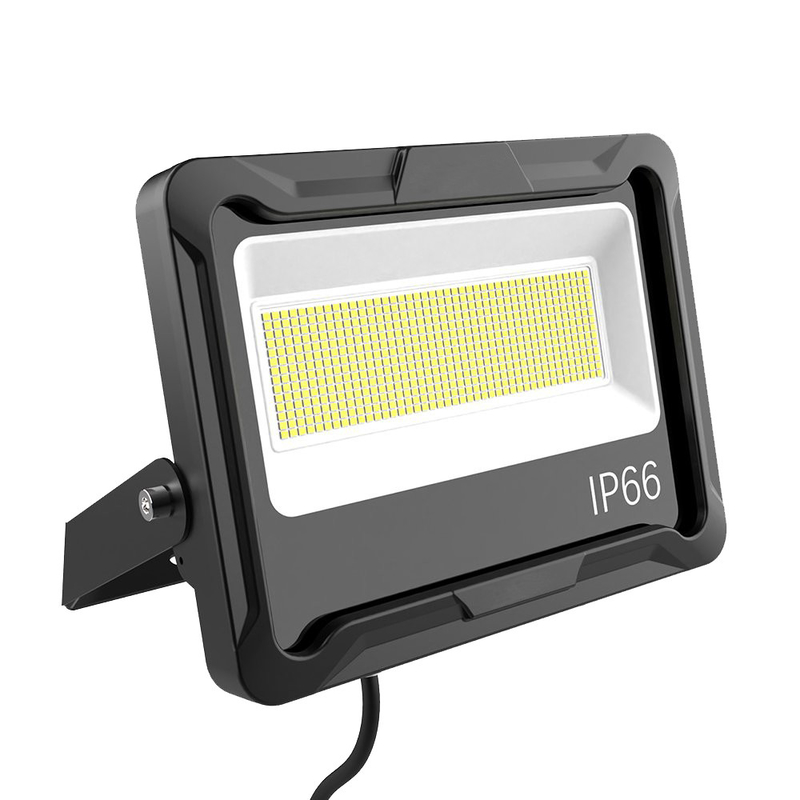

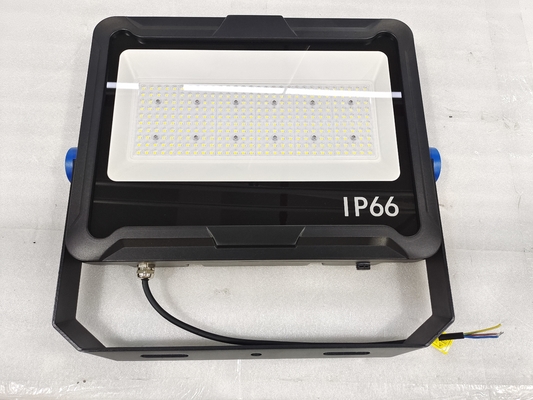

| Product Weight（kg）: | 1.5 | Product Name: | Outdoor Led Flood Light |
| Usage: | Ourdoor Lighting | LED Chip: | Lumileds/Sanan |
| Power: | 30W/60W/100W/200W/300W/400W/500W | CCT: | 2700~6500K |
| LED Driver: | Meanwell/normal | Power Factor: | PF>0.95 |
| Material: | Aluminium Alloy + PC | IP Grade: | IP 66 Waterproof |
| Appplications: | Facade Building | Port: | Shenzhen |
|
Model S
YXR-FL-
|
30W-S
|
60W-S
|
100W-S
|
200W-S
|
300W-S
|
400W-S
|
500W-S
|
||||||
|
Power
|
30W
|
60W
|
100W
|
200W
|
300W
|
400W
|
500W
|
||||||
|
Lumen
|
4800
|
9600
|
16000
|
32000
|
48000
|
64000
|
80000
|
||||||
|
Size
|
L168*W120*H36.3 mm
|
L230*W180*H69.5 mm
|
L280*W215*H69.8 mm
|
L459.4*W322.5*H71.3 mm
|
L459.4*W322.5*H71.3 mm
|
L585*W420*H71.8 mm
|
L585*W420*H71.8 mm
|
||||||
|
Weight(KG)
|
0.95
|
2.6
|
3.45
|
6.6
|
6.9
|
10.8
|
11
|
||||||
|
Efficacy
|
160/170/190lm/w
|
|
|
|
|
|
|
||||||
|
Led chips
|
Lumileds 2835
|
|
|
|
|
|
|
||||||
|
Input Voltage
|
AC85-265V
|
|
|
|
|
|
|
||||||
|
Color Temperature
|
2700-6500K
|
|
|
|
|
|
|
||||||
|
CRI
|
≥80Ra
|
|
|
|
|
|
|
||||||
|
Power Factor
|
>0.97
|
|
|
|
|
|
|
||||||
|
Beam Angle
|
25°/45/°90°/120°
|
|
|
|
|
|
|
||||||
|
Material
|
Aluminum alloy+PC lens
|
|
|
|
|
|
|
||||||
|
IP Grade
|
IP66
|
|
|
|
|
|
|
||||||
