Product Details:
|
| Lamp Luminous Efficiency(lm/w): | 150 | Color Rendering Index(Ra): | 70 |
|---|---|---|---|
| Support Dimmer: | Yes | Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Auto CAD Layout, Onsite Metering, Project Installation |
| Working Time (hours): | 50000 | Application: | Sports Stadiums, Stadium Lighting |
| Warranty(Year): | 5-Year | Type: | Outdoor LED High Mast Stadium Flood Light |
| OEM/ODM: | Accepted | LED Chip: | 5050 |
| Highlight: | sport court light 1500w,1500w athletic field lighting,aluminum housing sport court light |
||

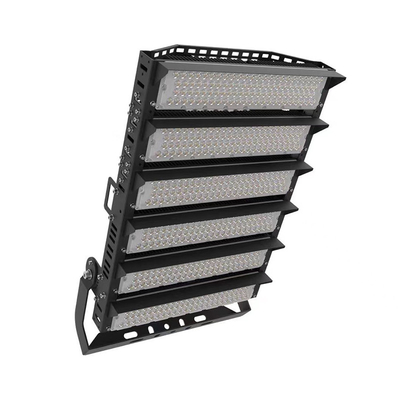

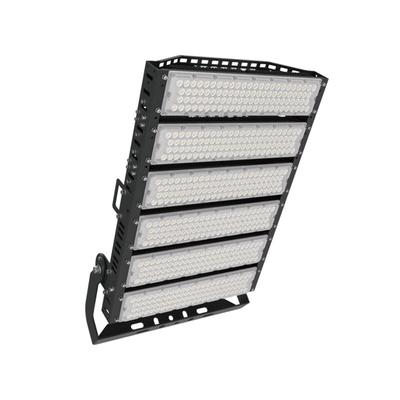

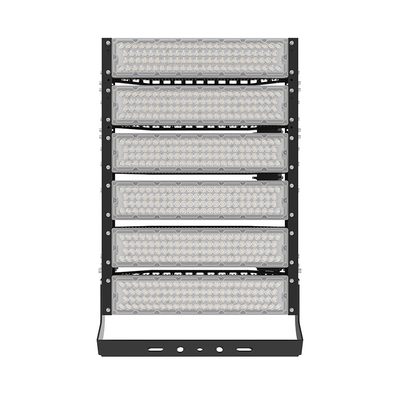

Our 1500W athletic field lighting, designed with aluminum housing, is perfect for rugby fields. These lights provide intense and clear illumination, ensuring excellent visibility for players and spectators alike. With their sturdy aluminum construction, they offer enhanced durability and heat dissipation, making them a reliable choice for any rugby field lighting needs. Easy to install and maintain, these lights are designed to deliver optimal performance in all weather conditions.
Product Features
| Model | YXR-QC-1500W-C |
|---|---|
| Wattage | 1500W |
| Other Power Options | 250W 500W 750W 1000W 1250W |
| Lumen | 225000±5%lm |
| Size(mm) | 618*955*177 (Six Modules) |
| Net Weight | 30kg |
| Efficacy | 150lm/W ±5% |
| Beam Angle | 8°/20°/40°/60° 49*21°(asymmetrical 50°) 49*21°(asymmetrical 65°) |
| LED | Sanan / Lumileds 5050 |
| Color Temperature | 3000K-6500K |
| Input Voltage | AC100-277V / AC90-305V |
| CRI | ≥70Ra |
| PF | ＞0.97 |
| THD | 15%＜THD＜20% |
| Work Temperature | -35~55℃ |
| Humidity | 15%~90% RH, no condensing |
| IP Grade | IP66 |
| IK Grade | IK08 |
| Warranty | 5 Years |
| Life Span | ≥50,000 Hrs (LM70 @ 35℃ ) |
| Finish | Sprayed with outdoor special powder |
| Body Material | PC lens + Aluminum housing |
| Electronic Safety Grade | Class I |
| Wire | Rubber cable(3*1mm²) L=0.5m |
Lumileds SMD5050 LED chips
Light transmittance of PC more than 93%, light efficiency 150+5% lm/w, low luminous decay.

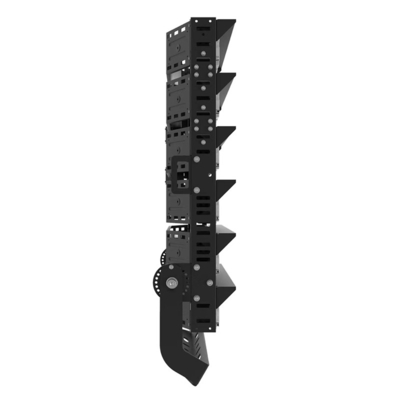

The bracket is equipped with a high-precision dial
The whole product can be 180°adjustable, easy to use install and maintain.
Moso or other famous brand LED driver
High efficiency, energy saving, stable, flicker-free, longer span life.
1060 Pure aluminum fins riveting design
Hollow out in the middle of the heat sink increasing air convection, better heat dissipation.
Whole lamp with Ingress protection IP66
Ingress Protection IP66 impact resistance lK08.
