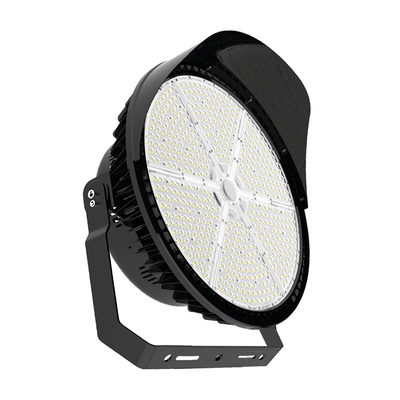

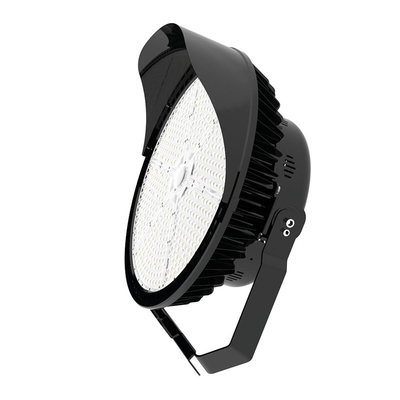

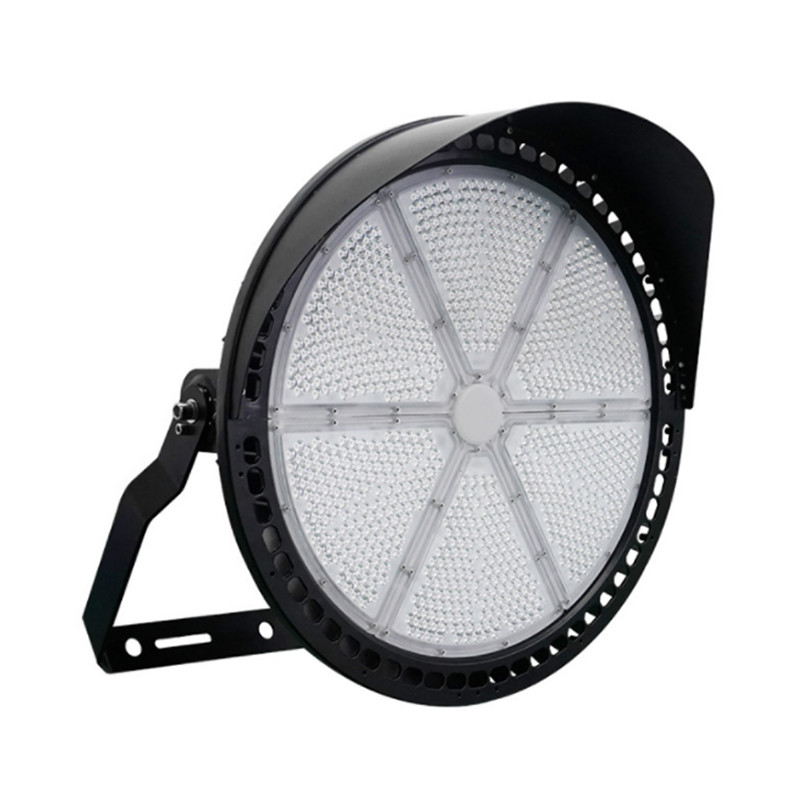

1200W Football Floodlights In Cricket Stadium 180000lm For Soccer Field

High Efficiency 1200W Floodlights in Cricket Stadium for Soccer Field

Our high-efficiency 1200W floodlights are perfect for cricket stadium or soccer fields, providing powerful and uniform illumination. These lights are engineered to maximize light output while minimizing energy consumption, making them an eco-friendly and cost-effective lighting solution. Ideal for large sports venues, they ensure excellent visibility and enhance the overall game experience.

Product Features

• Top-tier LED chips with advanced lenses ensure optimal lighting performance, reaching 150lm/W with minimized glare and light spillage. Delivers uniform and soft brightness; customizable for greater efficiency.
• Adjustable light distribution for stadiums with angles of 15°, 30°, 60°, and 90°, using high-quality PC lenses that offer excellent light transmission and resist yellowing.
• Integrated aluminum design with extensive heat-dissipating fins and UV-protected anti-corrosion coating. IP66 rated for reliable outdoor performance.
• Powerful and compact with improved safety and reduced wind resistance compared to standard module lights.



Product Parameters



Model	YXR-QC-1200W-D
Power	1200W
Lumens(lm)	180000
Other Power Options	300W/500W/600W/750W/1000W
Weight(kg)	28.5
Sizes(mm)	565*652*352
Efficacy	150lm/W
CCT	2700-6500K
CRI	≥70Ra
LED Chips	San'an 5050/Lumileds 5050
PF	>0.95
Input Voltage	AC100-277V(Moso)
Beam Angle	30°
Work Temp	-35~55℃
Humidity	15%~90% RH, no condensing
Finish	Sprayed with outdoor special powder
Life Span	≥50,000 Hrs (LM70 @ 35℃ )
IP Grade	IP66
IK Grade	IK08
Body material	PC lens + Aluminum housing
Power Wire	Rubber cable(3*1.5mm²) L=0.3m
Electronic safety grade	Class I



Product Details

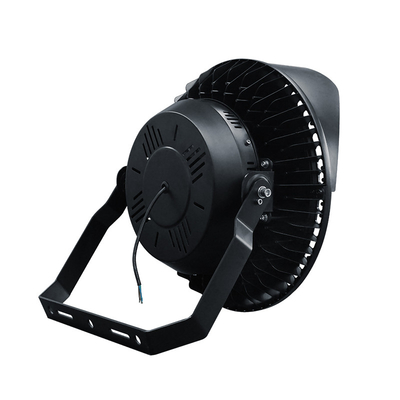

Excellent heat dissipation

Integral ADC12 aluminum die-casting, sturdy and durable, adopt hollow air convection heat dissipation, high

performance heat dissipation.



Professional optical lens

Different beam angles are optional:15°/30°/60°/90°, meeting the requirement of professional light distribution,

restraining the dazzle of light and spilling light effectively.



The whole lamp IP66 waterproof

The whole lamp IP66 waterproof and dust-proof rated, IK08 impact grade.



High brightness Brand LED chips

High light transmittance>93%, using brand chips, light efficacy is up to 150lm/W, good CRl, low

heat and long lifespan.



Qualified brand driver

High efficiency Moso driver or other famous brand power supply is used, constant current and voltage,

with short circuit, over-voltage, overcurrent, over temperature protection, the efficiency up to 95%.
