Product Details:
|
| Power: | 400W | Lumen: | 52000lm |
|---|---|---|---|
| Input Voltage(V): | AC100-277V | Warranty(Year): | 5-Year |
| Light Source: | High Brightness LED | Support Dimmer: | Customized |
| Applications: | Highway, Tunnel Lighting; Warehouse; Outdoor Lighting | LED Chip: | San'an/ Lumileds 3030 |
| CCT: | 2700K-6500K | Service: | DIALux Calculation And Visualization |
| Highlight: | led high mast light 52000lm,400w high mast lighting system,high power led high mast light |
||

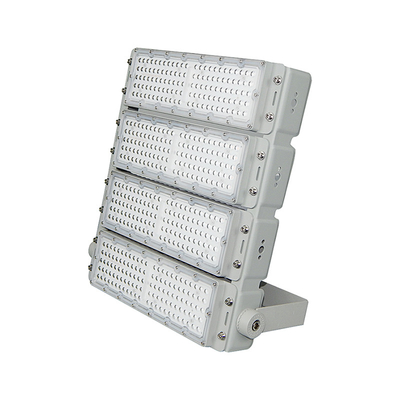

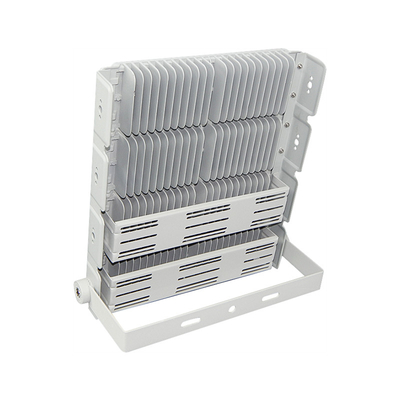

High Power LED 400W High Mast Lighting System for Highway
This 400W high power LED mast lighting system is designed for highway illumination. It provides intense and widespread light, ensuring safe and clear visibility for high-traffic roadways. The high power output supports efficient lighting over large distances, enhancing safety and reducing accidents on highways.
*Ultra-low luminous decay<10% in 5 years.L70>50,000hrs.
*Junction temperature<70℃,good heat dissipation provide longer lifetime.
*Light transmittance of PC more than 93%.
*Intelligent dimming system.0~10V,DMX and DALI dimming models are available.
*IP67 rating is applicable to outdoor environment.
*Working environment in -35℃ to 55℃.
*CE/RoHS/FCC/LM79/LM80/IES file is available.
*50000 hours lifespan with 5 years warranty.
.
| Model | YXR-TL-400W-G |
| Power | 400W |
| Lumen (lm) | 52000 |
| Weight (kg) | 7.8 |
| Sizes(mm) | 400*410*180 |
| Light Efficiency | 130lm/W |
| CCT | 2800-3000K;3000-3200K;4000-4500K;5000-5500K;6000-6500K |
| CRI | ≥70Ra |
| LED | San'an/Lumileds SMD 3030,120pcs per module |
| PF | >0.97 |
| Input Voltage | AC100-277V(Moso) |
| THD | 15%<THD<20% |
| Beam Angle | 30/60°/90°/70*140° |
| Work Temp | -35~+55℃ |
| Humidity | 15%~90%RH,no condensing |
| Finish | Sprayed with outdoor special powder |
| Life Span | ≥50,000 Hrs (LM80@35℃) |
| IP Grade | IP66 |
| IK Grade | IK08 |
| Body material | PC lens + Aluminum housing |
| Power Wire | Rubber cable(3*1mm²) L=0.3m |
| Electronic safety grade | Class I |
