Product Details:
|
| Power: | 1000W | Lumen: | 130000lm |
|---|---|---|---|
| Input Voltage(V): | AC100-277V | Warranty(Year): | 5-Year |
| Light Source: | High Brightness LED | Support Dimmer: | Customized |
| Applications: | High Mast Lighting, Area Lighting | LED Chip: | San'an/ Lumileds 3030 |
| CCT: | 2700K-6500K | OEM ODM: | Yes |
| Highlight: | high mast lamp 1000watt,1000watt high mast flood light,short circuit protection high mast lamp |
||

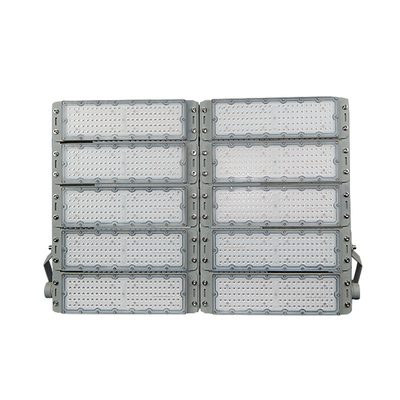

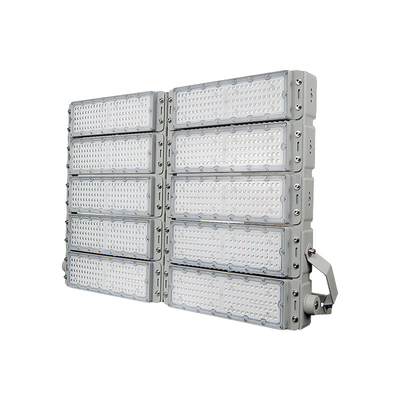

Circuit Protection 1000W High Mast Lamp for Hazardous Area
This 1000W high mast lamp features short circuit protection, making it ideal for hazardous areas. It offers secure and dependable lighting in environments with potential electrical hazards. The short circuit protection ensures operational safety and reliability, providing robust illumination in challenging conditions.
1. HIGH EFFICIENCY & ENERGY SAVING
2. 5 YEAR WARRANTY & LONG SERVICE LIFE
3. POWER SELECTABLE: Equipped With Three Working Wattage Options
4. DUSK-TO-DAWN PHOTOCELL
5. CE FCC ROHS & SAFETY INSTALLATION
6. SUPER WATERPROOF: Ip65 Certified Water Resistant And Dustproof
| Model | YXR-TL-1000W-G |
| Power | 1000W |
| Lumen (lm) | 130000 |
| Weight (kg) | 19.8 |
| Sizes(mm) | 765*515*180 |
| Light Efficiency | 130lm/W |
| CCT | 2800-3000K;3000-3200K;4000-4500K;5000-5500K;6000-6500K |
| CRI | ≥70Ra |
| LED | San'an/Lumileds SMD 3030,120pcs per module |
| PF | >0.97 |
| Input Voltage | AC100-277V(Moso) |
| THD | 15%<THD<20% |
| Beam Angle | 30/60°/90°/70*140° |
| Work Temp | -35~+55℃ |
| Humidity | 15%~90%RH,no condensing |
| Finish | Sprayed with outdoor special powder |
| Life Span | ≥50,000 Hrs (LM80@35℃) |
| IP Grade | IP66 |
| IK Grade | IK08 |
| Body material | PC lens + Aluminum housing |
| Power Wire | Rubber cable(3*1.5mm²) L=0.3m |
| Electronic safety grade | Class I |
IP66 Waterproof
Equipped with silicone waterproof ring, integrated waterproof lens. lP66 waterproof and dust-proof no fear of
harsh environment.
Gear scale design
It is more convenient to adjust and fix the angle and at the same time.avoid the phenomenon of paint peeling
due to friction between the bracket and the lamp body.
High -quality rotation screw
304 stainless steel screws, long -term durability, anti-rust and anti -corrosion.
Acrylic optical lens high brightness LED Chips
Acrylic optical lens effectively casts the light around, making the light shine farther and brighter.
Moso LED driver
Famous brand Moso or other brand driver optional, good stability, high efficiency, flicker free, anti-surge.

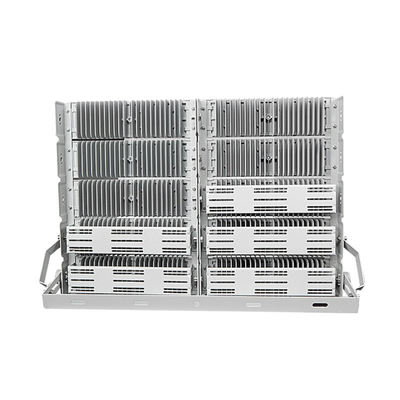

Die-casting module radiator
The die-casting process module radiator is adopted the bottom plate is in close contact with the light source
and the air convection air duct ensures stable heat dissipation performance.
Tunnel Illumination, street lighting, highway lighting, underpass lighting, and bridge lighting, parking lot lighting, industrial lighting, roadway lighting, urban lighting, and emergency lighting, area lighting, flood lighting, construction site lighting, outdoor lighting, sports field lighting, perimeter lighting, and transport infrastructure lighting.
FAQ
Q1. Are you a manufacturer?
Yes, we have our factory with over 10 years of R&D and manufacturing experience based on ISO quality management since 2011.
Q2. Do you have any MOQ limit for LED light orders?
No MOQ, 1pc for sample checking is available.
Q3. Can I get a lower price for a large quantity of orders?
Yes, please check with our sales staff for the details.
Q4. How about the lead time of ordering?
Our standard sample lead time is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time, please also check with our sales team.
Q5. Can you provide OEM and ODM services?
We can provide OEM and ODM products, with customized label designs on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.
Q6. What is the payment terms of your formal order?
We accept payment via TT, Paypal, and Western Union, and we offer EXW, FOB, CIF, and CFR terms.
Q7. How to deal with the defective?
All of our products are produced in a strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer a 3- 5 years warranty for this product, if there is any defective during the warranty, please provide pictures or videos of the working situation of the defective lights, and we will ship the new lights to you within a few days or send it together with your next order.
