Product Details:
|
| Power: | 400W | Lumen: | 60000lm |
|---|---|---|---|
| ODM OEM: | Yes | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum | Application: | Sports Stadium Lighting |
| Light Source: | LED | Warranty(Year): | 5-Year |
| Beam Angle: | 60°/90°/120° | Colar: | Black |
| Highlight: | 150lm industrial led high bay lights,400w high bay fixture,industrial led high bay lights 400w |
||

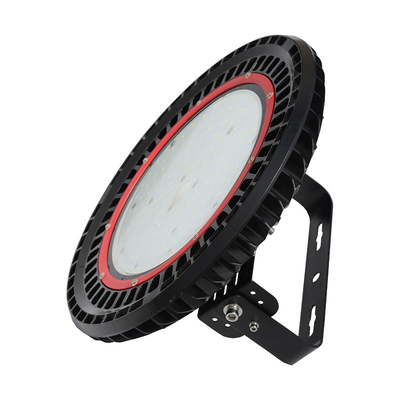

150lm per watt 400W High Bay Light Fixtures for Sports Facilities
Our 400W high bay light fixtures are engineered for sports facilities, offering a light efficiency range of 160-150lm/W. These fixtures provide powerful illumination with minimal glare, ideal for arenas and stadiums. Their high-efficiency design ensures optimal visibility and performance, enhancing the experience for both players and spectators.
Product Features
Product Parameters
| Model | YXR-UFO-400W-A |
| Rated Power | 400W |
| Other Power Options | 100W 150W 200W 300W |
| Lumen | 60000±5%lm |
| Size(mm) | Ø460*238mm |
| Net Weight | 10kg |
| Light Efficacy | 150lm/W ±5% |
| Beam Angle | 60°/90°/120° |
| LED | San'an 3030 |
| Color Temperature | 2800K-6500K |
| Input Voltage | AC100-277V 50/60Hz (Moso) |
| Protection | OTP, OCP, OVP, SCP |
| Surge Protection | 6KV |
| Thermal Conductivity | 96 W/m·K |
| CRI | ≥70Ra |
| SDCM | <6 |
| PF | ＞0.97 |
| THD | <15% |
| Work Temperature | -30~60℃ |
| LED Junction Temperature | ≤80℃ |
| Humidity | 15%~90% RH, no condensing |
| IP Grade | IP65 |
| IK Grade | IK08 |
| Security Requirement | CE |
| Environmental Directives | RoHS |
| Warranty | 5 Years |
| Life Span | ≥50000H |
| Finish | Sprayed with outdoor special powder |
| Body Material | PC lens + Aluminum housing |
| Electronic Safety Grade | Class I |
| Wire | Rubber cable(3*1mm²) L=0.3m |
Product Details
Overall die-casting process
ADC12 aluminum, heat dissipation effect increases by 10%, life expectancy more than 50000hours
60° / 90° / 120° beam angles
The light-emitting surface uses PC material lens light transmittance ≥89%, light efficacy150lm per watt.
IP65 Waterproof rating
Ensure stable and excellent performance any wet, humid, moist rainy place.

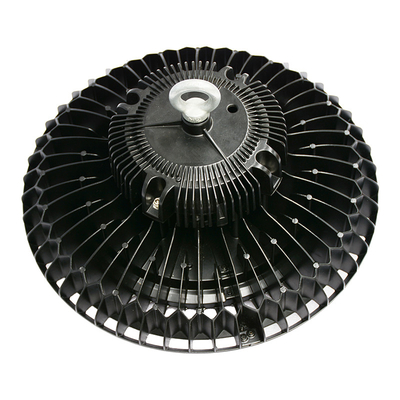

Integrated radiator
Integrated precision die cast aluminum radiator, thickened material uses sealing strong convection principles,
more shrink design heat dissipation fast and keep the light source for a long time.
Beam Angles
Sizes Chart
Installations
FAQ
Q1. Are you a manufacturer?
Yes, we have our factory with over 10 years of R&D and manufacturing experience based on ISO quality management since 2011.
Q2. Do you have any MOQ limit for LED light orders?
No MOQ, 1pc for sample checking is available.
Q3. Can I get a lower price for a large quantity of orders?
Yes, please check with our sales staff for the details.
Q4. How about the lead time of ordering?
Our standard sample lead time is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time, please also check with our sales team.
Q5. Can you provide OEM and ODM services?
We can provide OEM and ODM products, with customized label designs on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.
Q6. What is the payment terms of your formal order?
We accept payment via TT, Paypal, and Western Union, and we offer EXW, FOB, CIF, and CFR terms.
Q7. How to deal with the defective?
All of our products are produced in a strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer a 3- 5 years warranty for this product, if there is any defective during the warranty, please provide pictures or videos of the working situation of the defective lights, and we will ship the new lights to you within a few days or send it together with your next order.
