Product Details:
|
| Power: | 100W | Lumen: | 15000lm |
|---|---|---|---|
| Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum | Application: | Warehouse Lighting |
| Light Source: | LED | Warranty(Year): | 5-Year |
| Beam Angle: | 60°/90°/120° | Installation: | Ceiling Mount |
| Highlight: | round industrial led high bay lights,100w led high bay fixtures,industrial led high bay lights 100w |
||

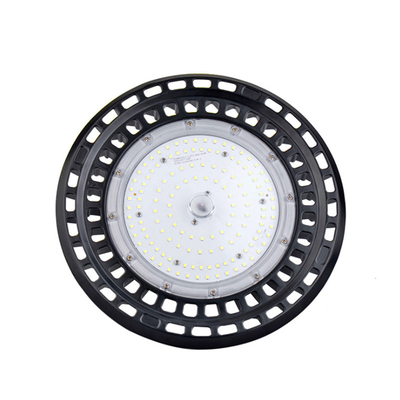

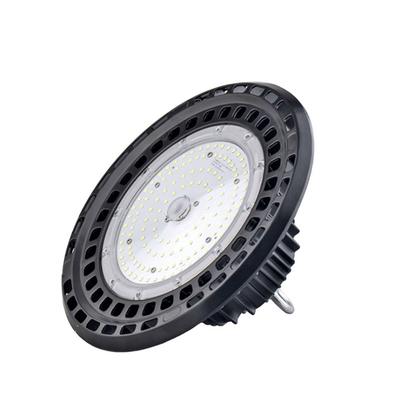

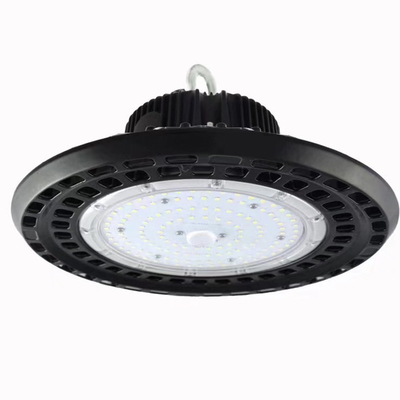

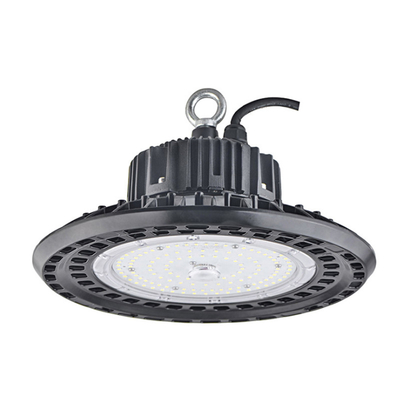

High Efficiency Round 100W High Bay Light for Warehouse Lighting
Our 100W round high bay light is designed for efficient warehouse lighting. With its high-efficiency LED technology, it delivers bright and even illumination across large areas. Ideal for warehouse settings, this light ensures excellent visibility and safety, enhancing productivity and reducing energy costs with its superior lighting performance and energy efficiency.
Product Features
Product Parameters
| Model | YXR-UFO-100W-A |
| Rated Power | 100W |
| Other Power Options | 150W 200W 300W 400W |
| Lumen | 15000±5%lm |
| Size(mm) | Ø280*176mm |
| Net Weight | 2.5kg |
| Light Efficacy | 150lm/W ±5% |
| Beam Angle | 60°/90°/120° |
| LED | San'an 3030 |
| Color Temperature | 2800K-6500K |
| Input Voltage | AC100-277V 50/60Hz (Moso) |
| Protection | OTP, OCP, OVP, SCP |
| Surge Protection | 6KV |
| Thermal Conductivity | 96 W/m·K |
| CRI | ≥70Ra |
| SDCM | <6 |
| PF | ＞0.97 |
| THD | <15% |
| Work Temperature | -30~60℃ |
| LED Junction Temperature | ≤80℃ |
| Humidity | 15%~90% RH, no condensing |
| IP Grade | IP65 |
| IK Grade | IK08 |
| Security Requirement | CE |
| Environmental Directives | RoHS |
| Warranty | 5 Years |
| Life Span | ≥50000H |
| Finish | Sprayed with outdoor special powder |
| Body Material | PC lens + Aluminum housing |
| Electronic Safety Grade | Class I |
| Wire | Rubber cable(3*0.75mm²) L=0.3m |
Product Details
Overall die-casting process
ADC12 aluminum, heat dissipation effect increases by 10%, life expectancy more than 50000hours
60° / 90° / 120° beam angles
The light-emitting surface uses PC material lens light transmittance ≥89%, light efficacy150lm'w.
IP65 Waterproof rating
Ensure stable and excellent performance any wet, humid, moist rainy place.
Integrated radiator
Integrated precision die cast aluminum radiator, thickened material uses sealing strong convection principles,
more shrink design heat dissipation fast and keep the light source for a long time.
Beam Angles
Sizes Chart
Installations
