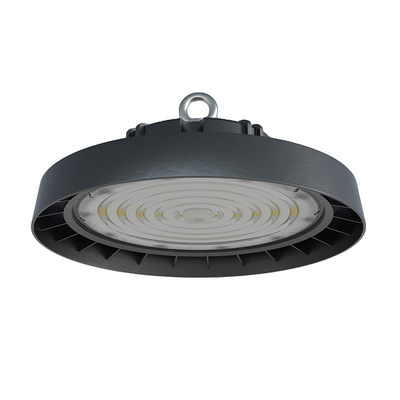

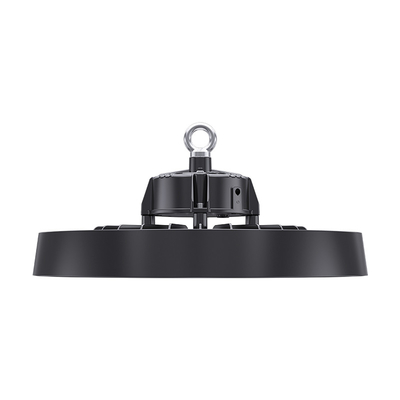

Our 200W LED high bay light features adjustable power settings, making it a versatile choice for industrial plants. With customizable brightness levels, this light allows for precise control over illumination based on the specific needs of your industrial environment. Its robust design ensures reliable performance and efficient lighting, contributing to a safer and more productive work area.
Product Parameters
| Model |
YXR-UFO-200W-B |
| Rated Power |
200W |
| Other Power Options |
100W 150W |
| Lumen |
26000±5%lm
30000±5%lm
36000±5%lm |
| Size(mm) |
Ø360*175mm |
| Net Weight |
3.1kg |
| Light Efficacy |
130lm/W ±5%
150lm/W ±5%
180lm/W ±5% |
| Beam Angle |
60°/90°/120° |
| LED |
San'an 2835 or Lumileds 2835 |
| Color Temperature |
2800K-6500K |
| CCT adjustable |
Available (Toggle switch) |
| Power adjustable |
Available (Toggle switch) |
| Input Voltage |
AC100-277V 50/60Hz (Moso) |
| Protection |
OTP, OCP, OVP, SCP |
| Surge Protection |
6KV |
| Thermal Conductivity |
96 W/m·K |
| CRI |
≥70Ra |
| SDCM |
<6 |
| PF |
＞0.97 |
| THD |
<15% |
| Work Temperature |
-30~60℃ |
| LED Junction Temperature |
≤80℃ |
| Humidity |
15%~90% RH, no condensing |
| IP Grade |
IP65 |
| IK Grade |
IK08 |
| Certificates |
CE RoHS |
| Warranty |
5 Years |
| Life Span |
≥50000H |
| Body Material |
PC lens + Aluminum housing |
| Electronic Safety Grade |
Class I |
| Wire |
Rubber cable(3*0.75mm²) L=0.3m |
Product Details
PC Optical Lens
High light transmittance, impact resistance, reduced glare while optimizing lighting performance, with 60°
90°120°beam angles to meet professional light distribution.
Two installation brackets can be selected
Ring installation U hanging installation.

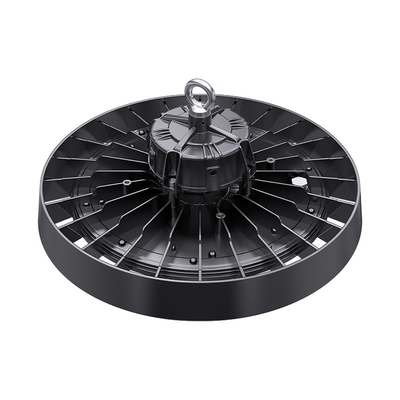

Excellent Heat Dissipation Performance
Hollow air convection heat dissipation design increase more airflow for better heat dissipation.
IP65 Ingress Protection
Waterproof, dust-proof and explosion-proof, it can stand up to the bad elements durable.
High-performance Moso Driver
Over-voltage, over-current, over-temperature short circuit protection, flicker-free.
High Brightness SMD 2835 LED Chip
Light efficiency up to180lm/W5% Anti-glare Long life.
Applications
FAQ
Q1. Are you a manufacturer?
Yes, we have our factory with over 10 years of R&D and manufacturing experience based on ISO quality management since 2011.
Q2. Do you have any MOQ limit for LED light orders?
No MOQ, 1pc for sample checking is available.
Q3. Can I get a lower price for a large quantity of orders?
Yes, please check with our sales staff for the details.
Q4. How about the lead time of ordering?
Our standard sample lead time is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time, please also check with our sales team.
Q5. Can you provide OEM and ODM services?
We can provide OEM and ODM products, with customized label designs on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.
Q6. What is the payment terms of your formal order?
We accept payment via TT, Paypal, and Western Union, and we offer EXW, FOB, CIF, and CFR terms.
Q7. How to deal with the defective?
All of our products are produced in a strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer a 3- 5 years warranty for this product, if there is any defective during the warranty, please provide pictures or videos of the working situation of the defective lights, and we will ship the new lights to you within a few days or send it together with your next order.
