Product Details:
|
| Power: | 200W | Lamp Luminous Efficiency(lm/w): | 28000lm |
|---|---|---|---|
| Certification: | CE, RoHS, EMC, LVD | Input Voltage(v): | AC100-240V |
| Lamp Body Material: | Aluminum Alloy+Tempered Glass | IP Rank: | IP66 |
| Application: | Building, Square,Garden | Light Source: | LED Chips |
| Highlight: | 200w outdoor led flood lights,slim profile led stadium lighting,outdoor led flood lights slim profile |
||

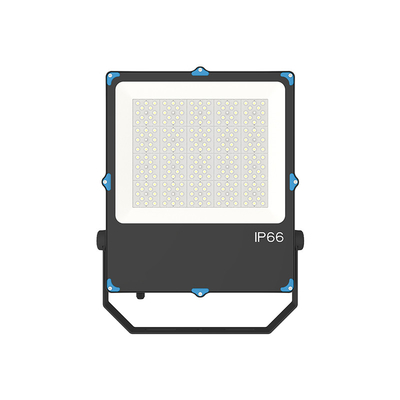

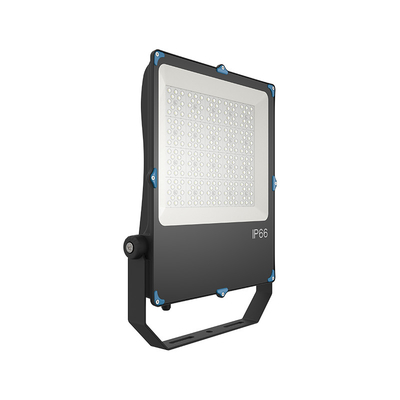

Compact Design Slim Profile 200W Outdoor Floodlights LED Stadium Lighting LED for Highway Railway
Featuring a compact design and slim profile, our 200W outdoor floodlights are perfect for LED stadium lighting, highways, and railways. These floodlights provide powerful illumination with minimal bulk, making them easy to install and maintain. High efficiency and superior brightness ensure excellent visibility and safety. Built for durability, they can withstand the rigors of outdoor environments, providing reliable performance for large-scale lighting applications in sports arenas and transportation infrastructure.
Product Features
Product Parameter
| Model | YXR-FL-200W-H |
| Wattage | 200W |
| Other Power Options | 30W 50W 100W 150W 250W 300W 400W |
| Lumen | 28000±5%lm |
| Size(mm) | 445*392*57 |
| Net Weight | 5.4kg |
| Light Efficacy | 140lm/W ±5% |
| Beam Angle | 30°/60°/90°/120° |
| LED | Lumileds 2835 |
| Color Temperature | 3000K-6500K |
| Input Voltage | AC100-277V(MOSO) |
| CRI | ≥70Ra |
| PF | ＞0.97 |
| THD | 15%＜THD＜20% |
| Work Temperature | -30~60℃ |
| Humidity | 15%~90% RH, no condensing |
| IK Grade | IK08 |
| IP Grade | IP66 |
| Warranty | 5 Years |
| Life Span | ≥50000H |
| Finish | Sprayed with outdoor special powder |
| Body Material | PC lens + Aluminum housing |
| Electronic Safety Grade | Class I |
| Wire | Rubber cable(3*0.75mm²) L=0.3m |
Product Details
High tempered glass
Provides double protection and good self-clean, besides, the light transmittance is 95%.
Thickened U-shaped bracket
The gear buckle angle can be adjusted according to the need sand the fastening does not slip.
Glass front buckle design
IP66 waterproof, novel and beautiful, buckles are available in blue and black.

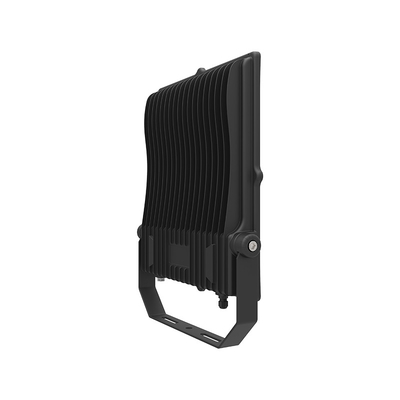

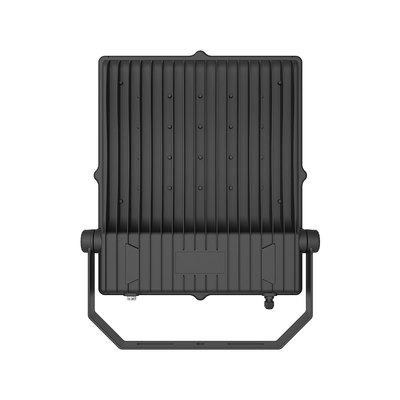

Integrated die-casting
thickened heat dissipation ribs, quickly and evenly dissipate the heat generated by the light source,
prolonging the service life.
Various beam angle
Accurate light distribution: 30°/60°/90°/120°suitable for different places.
Adopt famous brand LED chips San'an/Lumileds
High luminous efficiency 140lm/w, high CRl, ultra -low luminous decay <10% in 5years.
